Penetration Thermometer – Testo 905-T1

Model No: Testo 905-T1Part No: 0560 9055

The testo 905-T1 penetration thermometer enables reliable temperature measurements in liquids, soft or powdery substances and in the air with a large measuring range and its short response time that make it stand out. Both advantages are due to the high-quality type K thermocouple probe.

  • Temperature measurements up to +500°C possible for a short time
  • Quick response time
  • Long, pointed thermocouple probe: ideal for measurements in liquids, soft or powdery substances and in the air
  • Measuring values easy to read off thanks to a pivoting display

Details

Product Description

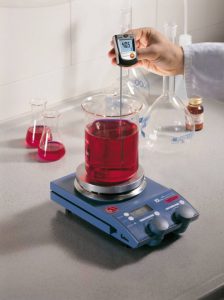

The testo 905-T1 penetration thermometer has a large measuring range from -50 to +350°C and can even measure up to +500°C for a short time (1 to 2 minutes). Its permanently integrated type K thermocouple probe makes this possible. In addition, the penetration thermometer is characterized by its short response time. The thermocouple probe reacts very quickly, particularly in water (or other liquids). The penetration thermometer is therefore ideally suited for measurements in fluid substances in laboratory, chemical and pharmaceutical areas.However, as well as immersion/penetration of the long, pointed probe shaft in liquids and soft or powdery substances being possible, you can also insert it in ventilation ducts to measure the temperature there. The penetration thermometer is also a winner when it comes to accuracy, because it achieves a higher level than typical comparable models.A really user-friendly penetration thermometer

The testo 905-T1 penetration thermometer is easy to use and very user-friendly. The measuring values are shown very legibly on the display. The fact that the display can be pivoted also makes readout easier. This is particularly practical, since it means the measuring values can be read off perfectly from many different perspectives.

Delivery Scope

testo 905-T1 temperature instrument with large measuring range, including attachment clip and batteries.

Technical Data

Temperature

Measuring range

-50 to +350 °C (short-term to +500 °C)

Accuracy

±1 °C (-50 to +99.9 °C)

±1 % of mv (Remaining Range)

Resolution

0.1 °C

Reaction time

t99 = 10 s (in water)

General technical data

Weight

80 g

Dimensions

270 x 40 x 70 mm ((LxWxH))

Operating temperature

0 to +40 °C

Product-/housing material

ABS

Product colour

Black

Authorizations

CE 2014/30/EU

Length probe shaft

200 mm

Length probe shaft tip

4 mm

Diameter probe shaft

3 mm

Battery type

3 AAA micro batteries

Battery life

1000 h

Display type

LCD

Display size

one-line

Storage temperature

-20 to +70 °C

Applications

Downloads

 Datasheet Download  Instruction Manual Download
