Manifold With Wireless Probe – testo 550i smartkit

Model No: Testo 550iPart No: 0564 3550

The kit for app-controlled, wireless measurements and digital documentation on your smartphone. You will get the testo 550i app-controlled digital manifold with Bluetooth, 2-way valve block and sturdy hook, two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. For other wireless measurements, the optional Testo Smart Probes for temperature, humidity and vacuum are the perfect addition. You’ll be ideally equipped to carry out your measuring tasks on refrigeration and air conditioning systems and also heat pumps.

  1. All activities, from measurement through to documentation, using the App on your Smartphone
  2. The smallest digital manifold on the market
  3. Maximum reliability and excellent flexibility: extremely robust housing with protection class IP54, optionally expandable with the wireless testo Smart Probes for temperature, humidity and vacuum
  4. In the kit: App-controlled testo 550i digital manifold with Bluetooth® and 2-way valve block, 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), case

Details

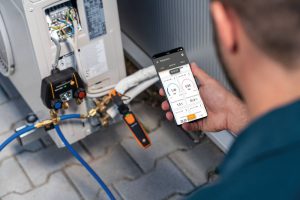

From the measurement itself through to the documentation – thanks to the app, you can have your everyday servicing and maintenance work on your smartphone or tablet. The testo 550i digital manifold is equipped with Bluetooth, 2-way valve block and a sturdy hook, and can be fully controlled via app and smartphone or tablet – for flexible, fast measurements and digital documentation.

Testo 550i – App-controlled digital manifold with Bluetooth and 2-way valve block

  1. For carrying out exceptionally fast, easy measurements on refrigeration and air conditioning systems and heat pumps
  2. testo Smart App: Control your servicing and maintenance tasks completely via app and smartphone or tablet, enjoy clearly presented results and digital documentation, set your own favourites, and always have the latest refrigerants
  3. Maximum reliability and convenient handling in environments that are difficult to access thanks to an exceptionally compact, extremely robust housing with IP54 protection class
  4. Maximum flexibility for working wirelessly: Bluetooth probes for temperature, pressure and humidity automatically connect to the measuring instrument via the testo Smart App
  5. Continuously high performance in all conditions: You can depend on this manifold from Testo – it combines proven Testo quality with excellent robustness

Technical Data

Pressure measurement
Measuring range -1 to 60 bar
Accuracy ±0.5 % fs
Resolution 0.01 bar
Probe connection 3 x 7/16″ – UNF
Overload rel. (high pressure) 65 bar
General technical data
Operating temperature -10 to +50 °C
Protection class IP54
System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Battery type 3 AAA micro batteries
Battery life 130 h
Radio range 150 m
Refrigerants in instrument R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R1
Refrigerants update via App R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature -20 to +60 °C

Applications

Downloads

 Datasheet Download.  Instruction Manual Download
