Voltage tester – Testo 750-3

Model No: Testo 750-3Part No: 0590 7503

The testo 750-3 voltage tester is the most high-performance model in Testo’s convenient and reliable voltage tester family. In addition to the unique fibre-optic technology, the single pole voltage testing, the torch for measuring point illumination and the all-round LED display, it also has an LC display where the value currently being measured is shown.

  • Clear, patented all-round LED display
  • In accordance with DIN EN 61243-3:2011 and CAT III
  • LC display showing the reading
  • RC trigger function and vibrating load buttons.

Details

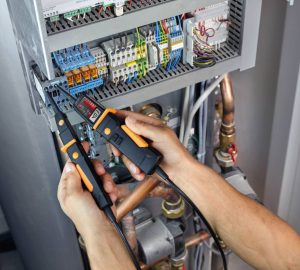

The testo 750-3 voltage tester is the most innovative voltmeter on the market. The clear all-round LED display with fibre-optic technology for ideal voltage indication can easily be read in any position. A second LC display also indicates the current reading. An anti-slip ring and the ergonomic shape of the handle also ensure you can work comfortably. The integrated torch helps with the illumination of dark measuring points. And the voltage tester is extremely durable thanks to the robust housing.The testo 750-3 voltage tester is first and foremost suitable for determining voltage or de-energization on electrical circuits or systems. In addition, it can also be used to test continuity, measure rotating magnetic fields and test residual current circuit breakers via the RC trigger function. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.

Delivery Scope

testo 750-3 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.

Technical Data

DC voltage

Measuring range

12 to 690 V

Resolution

max. 0.1 V

Accuracy

± (3 % of mv + 5 Digit)

AC voltage

Measuring range

12 to 690 V

Resolution

max. 0.1 V

Accuracy

± (3 % of mv + 5 Digit)

General technical data

Operating humidity

0 to 95 %RH

Weight

295 g

Dimensions

270 x 70 x 35 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Protection class

IP64

Standards

EN 61243-3; EN 61326-1; EN 61010-1

Battery type

2 AAA micro batteries

Display type

LCD

Display size

one-line

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Instrument Measurement Functions

Continuity testing

yes

Display ligthing

yes

Hold

yes

RDC/RC trigger function

yes

Rotating magnetic field testing

yes

Single pole phase testing

yes

Measuring point illumination

yes

Applications
