Clamp meter – Testo 770-1

Model No: Testo 770-1 Part No: 0590 7701

The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

  • Fully retractable pincer arm for maximum flexibility
  • Auto AC/DC
  • Large two-line display
  • Measures the common electrical parameters.

Details

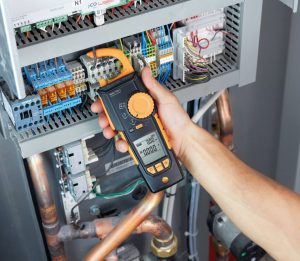

This clamp meter means you can cope in any application environment, no matter how tight. The movable pincer arm can be fully retracted into the instrument, so that you can for instance grab tightly packed cables in switching cabinets as if you were using a hook. You have never been able to measure as conveniently as this in tight spots.The operation of the testo 770-1 clamp meter is also easier and more reliable than ever before. It automatically detects and selects AC/DC and other electrical parameters, such as resistance, continuity, diode and capacitance. In addition, you can also use it to measure the starting current. And the two-line display presents your readings clearly and distinctly.

Delivery Scope

testo 770-1 TRMS clamp meter, including battery, 1 set of measuring cables (0590 0010),  instruction manual.

Technical Data

DC voltage

Measuring range

1.0 to 600.0 V

Resolution

max. 1 mV

Accuracy

± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range

1.0 mV to 600.0 V

Resolution

max. 1 mV

Accuracy

± (1.0 % of mv + 3 Digit)

DC current

Measuring range

0.1 to 400 A

Resolution

max. 0.1

Accuracy

± (2 % of mv + 5 Digit)

AC current

Measuring range

0.1 to 400 A

Resolution

max. 0.1 A

Accuracy

± (2 % of mv + 5 Digit)

Resistance

Resolution

max. 0.1 Ohm

Measuring range

0.1 to 40.00 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Capacitance

Resolution

max. 0.01 nF

Measuring range

10 nF to 100.0 μF

Accuracy

± (1.5 % of mv + 5 Digit)

Frequency

Measuring range

10 nF to 100.0 μF

Accuracy

±(0.1 % + 1 Digit)

General technical data

Operating humidity

0 to 80 %RH

Weight

378 g

Dimensions

249 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Product colour

Black

Standards

EN 61326-1; EN 61010-2-032; EN 61140

Battery type

3 AAA micro batteries

Display type

LCD

Display size

2 lines

Interface

2 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

True RMS

yes

Inrush current measurement

yes

Display (counts)

4,000

Autom. measurement parameter detection

yes
