Thermal imager (640 x 480 pixels, focus manual/auto, laser, 1 SuperTele lens and 2 lenses selectable) – Testo 890

Model No: Testo 890 Part No: 0563 0890 X6

A thermography kit for all eventualities: along with the testo 890 professional thermal imager, you also get three lenses. This means you are equipped for every measuring distance.

  • Testo 890 professional thermal imager: resolution 640 × 480 pixels, upgradable to 1280 × 960 pixels with SuperResolution technology, thermal sensitivity < 40 mK
  • Three lenses included in the kit: super-telephoto lens and 2 additional lenses (standard, 25° or telephoto lens) which you are free to choose
  • Sequence capturing in the instrument a possible option, humidity calculation, SiteRecognition, panorama image assistant, JPEG storage function and other practical features
  • The kit contains essential accessories, which you will always have to hand: robust case and lens case, spare rechargeable battery, fast battery charger, SD card, lens protective glass, etc.
Enquire now

Details

This professional thermal imager with super-telephoto lens and two additional lenses (free choice between standard, 25° and telephoto lens) can be used for the following measuring tasks:

  • Inspecting high-voltage lines: the super-telephoto lens enables you to inspect even the smallest of connections from a long, safe distance

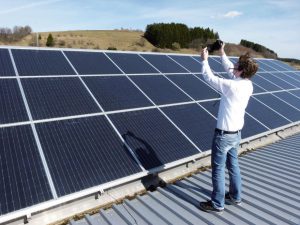

  • Pinpointing hotspots in solar parks (to locate defective cells)
  • Detecting irregularities in large industrial plants
  • Safe high-temperature measurement
  • Analysis of building shells at a glance
  • Detecting critical temperatures on circuit boards
  • Regular checks in electrical maintenance
  • Analysis of energy distribution systems
  • Carrying out detailed energy consultations

Scope of delivery

  • testo 890 thermal imager with 6.6° super-telephoto lens and SuperResolution
  • 2 x lenses (choice between standard, 25° and telephoto lens)
  • Robust case for the thermal imager
  • Pro software IRSoft (free download)
  • SD memory card
  • USB cable for data transfer to the PC
  • Carrying strap for the thermal imager
  • Lens cleaning cloth
  • Mains unit
  • Li-ion rechargeable battery
  • Lens protective glass
  • Spare rechargeable battery
  • Fast battery charger
  • Headset for voice recording
  • Lens cases

Technical Data

Standards and warranty

EU-/EG-guidelines

2004/108/EG
Infrared image output

Infrared resolution

640 x 480 pixels

Thermal sensitivity

˂ 40 mK at +30 °C

Field of view

42° x 32° (Standard lens), 25° x 19° (25° lens), 15° x 11° (Telephoto lens), 6.6° x 5° (Supertele)

Minimum focus distance

0.1 m (Standard lens), 0.2 m (25° lens), 0.5 m (Telephoto lens), 2 m (Supertele)

Geometric resolution (IFOV)

1.13 mrad (Standard lens), 0.68 mrad (25° lens), 0.42 (Telephoto lens), 0.18 (Supertele)

SuperResolution (Pixel)

1280 x 960 pixels

SuperResolution (IFOV)

0.71 mrad (Standard lens), 0.43 mrad (25° lens), 0.26 mrad (Telephoto lens), 0.11 mrad (Supertele)

Image refresh rate

33 Hz

Focus

auto / manual

*inside the EU, outside 9 Hz

Imager equipment

Power-LED

Included

Process analysis package

Optional

JPEG storage

included

Video measurement

up to 3 measurement points

Voice recording

Bluetooth****/wired headset

Laser

Laser marker

Panorama image assistant

Included

SiteRecognition

Included

Exchangeable lenses

25° x 19°; 15° x 11°; 6.6° x 5°

Standard lens

42° x 32°

Digital camera

Included

Interface

Labview; free download from hompage; USB

Fever detection

Optional

Video streaming

via HDMI

**** Bluetooth only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Japan, Russia, Ukraine, India, Australia

Image output visual

Image size

3.1 MP

Minimum focus distance

0.5
Image presentation

Display type

4.3″ LCD touchscreen with 480 x 272 pixels

Digital zoom

1-; 3-fold

Display option

IR image / real image

Colours

9 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo)

Video output

USB 2.0, Micro HDMI
Measurement

Measuring range

-30 to +100°C; 0 to +350 °C (switchable); 0 to +650 °C (switchable)

High temperature measuring

+350 … +1200 °C (not in connection with the telephoto lens)

Accuracy

±2 °C, ±2 % of m.v.

Emissivity

0.01; 1

Reflected temperature

manual

Transmission correction

Included

Accuracy high temperature

±2 °C, ±2 % of m.v.
Measuring function

Surface moisture distribution

Included

Humidity measurement

Optional

Solar mode – manual

Included

Analysis function

up to 10 measurement points, Hot/Cold Spot Recognition, up to 5 x area measurement (min/max & average), Isotherm and alarm values

Humidity measurement with humidity measuring instrument

with radio humidity probe; (automatic measurement value transfer in real time); *Wireless humidity probes only in the EU, Norway, Switzerland, USA, Canada, Colombia, Turkey, Brazil, Chile, Mexico, New Zealand, Indonesia
Imager storage

File format image

.bmt; export option in .bmp; .jpg; .png; .csv; .xls

File format video

.wmv; .mpeg-1; Testo format (fully radiometric video)

Storage device

SD cart 2GB (approx. 1500 – 2000 images)
Power supply

Battery type

Fast-charging, Li-ion battery can be changed on-site

Operating time

4.5 h

Charging options

In instrument / charger (optional)

Mains operation

yes
Ambient Condition

Air humidity

20 to 80 % RH non-condensing

Housing protection class

IP54

Vibration

2G

Storage temperature

-30 to +60 °C

Operating temperature

-15 to +50 °C
Physical specification

Tripod mounting

1/4″ – 20UNC

Product-/housing material

ABS

weight (without package)

1,630 g

Weight

1630 g

Dimensions

253 t1 132 t2 111 mm
PC software

System requirements

Windows 10; Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0

Application

Downlods

Datasheet Download Instruction Manual Download
