testo 350 – Analysis Box for exhaust gas analysis

Details

Ideal for professional flue gas analysis and industrial emissions measurement on industrial engines, burners, gas turbines and in thermal processes: the testo 350 flue gas analyzer performs a variety of measuring and analysis tasks, impresses over the long term thanks to its heavy-duty industrial design and is also suitable for complex data acquisition.

The testo 350 flue gas analyzer comprises two units

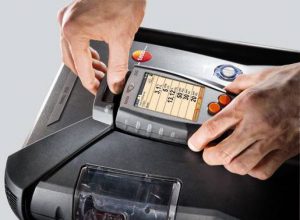

The testo 350 Control Unit (separate product) with a clear graphic display, allows you to control emissions measurement. Operation is really easy: burner, gas turbine, engine and user-defined applications are available for selection in the menu. The Control Unit enables remote control of the analyzer unit even when there is a spatial separation of the flue gas pipe and the setting location – particularly recommended for emissions measurements on large plants.

The testo 350 analyzer unit is just what you need for carrying out emissions measurement, because it contains all the sensor technology and electronics. The testo 350 analyzer unit includes an O₂ gas sensor as standard, but at least one additional sensor must be connected for commissioning (can be used with a maximum of 6 sensors). When connecting the optional sensors, you can choose between gas sensors for CO, CO₂, NO, NO₂, SO₂, H₂S or CxHy.The measuring range extension enables unrestricted measurements to be carried out, even when there are high gas concentrations. In order to protect the sensor technology, the measuring range extension (dilution) is automatically activated when there are unexpectedly high gas concentrations. The measuring range of a selected sensor can be extended by a specific factor. The service opening on the underside of the instrument allows fast access to all relevant serviceable and wearing parts, such as pumps and filters, enabling users to clean or replace these. In addition, the testo 350 has numerous instrument diagnosis functions. Instrument notifications are output in cleartext, making them easy to understand. The current status of the flue gas analyzer is constantly displayed.

Using the testo 350 analyzer unit

The analyzer unit can be operated with the Control Unit and it can also be used in direct combination with a PC/notebook and the easyEmission software (via USB, Bluetooth® 2.0 or CANCase). After programming, the analyzer unit can carry out measurements and save the results autonomously. It is also possible to display or transmit the measurement data from the analyzer unit to the Control Unit or software.

To send the measurement report straight away, you can also use our free App which turns your Android smartphone or tablet into a display device for the analyzer unit.

Delivery Scope

testo 350 analyzer unit, equipped with O₂, including differential pressure sensor, temperature probe input type K NiCr-Ni and type S, Pt10Rh-Pt, Testo data bus connection, rechargeable battery, integrated combustion air probe (NTC), trigger input, measurement data memory, USB interface, carrying strap kit and calibration protocol.Please note: The testo 350 analyzer unit can only be used in combination with the testo 350 Control Unit or the “easyEmission” software. These items are available separately.

Technical Data

Temperature – NTC
Measuring range	-20 to +50 °C
Accuracy	±0.2 °C (-10 to +50 °C)
Resolution	0.1 °C (-20 to +50 °C)

Ambient temperature probe

Temperature – TC Type K (NiCr-Ni)
Measuring range	-200 to +1370 °C
Accuracy	±0.4 °C (-100 to +200 °C) ±1 °C (-200 to -100.1 °C) ±1 °C (200.1 to +1370 °C)
Resolution	0.1 °C (-200 to +1370 °C)

Temperature – TC Type K (NiCr-Ni)

Measuring range

-200 to +1370 °C

Accuracy

±0.4 °C (-100 to +200 °C)

±1 °C (-200 to -100.1 °C)

±1 °C (200.1 to +1370 °C)

Resolution

0.1 °C (-200 to +1370 °C)

Temperature – TC Type S (Pt10Rh-Pt)
Measuring range	0 to +1760 °C
Accuracy	±1 °C (0 to +1760 °C)
Resolution	0.1 °C (0 to +1760 °C)

Differential Pressure – Piezoresistive
Measuring range	-40 to +40 hPa -200 to +200 hPa
Accuracy	±1.5 % of mv (-40 to -3 hPa) ±1.5 % of mv (+3 to +40 hPa) ±0.03 hPa (-2.99 to +2.99 hPa) ±1.5 % of mv (-200 to -50 hPa) ±1.5 % of mv (+50 to +200 hPa) ±0.5 hPa (-49.9 to +49.9 hPa)
Resolution	0.01 hPa (-40 to +40 hPa) 0.1 hPa (-200 to +200 hPa)

Differential Pressure – Piezoresistive

Measuring range

-40 to +40 hPa

-200 to +200 hPa

Accuracy

±1.5 % of mv (-40 to -3 hPa)

±1.5 % of mv (+3 to +40 hPa)

±0.03 hPa (-2.99 to +2.99 hPa)

±1.5 % of mv (-200 to -50 hPa)

±1.5 % of mv (+50 to +200 hPa)

±0.5 hPa (-49.9 to +49.9 hPa)

Resolution

0.01 hPa (-40 to +40 hPa)

0.1 hPa (-200 to +200 hPa)

Absolute Pressure
Measuring range	600 to +1150 hPa
Accuracy	±10 hPa
Resolution	1 hPa

Flue gas O₂
Measuring range	0 to +25 Vol.%
Accuracy	±0.8% of fsv (0 to +25 Vol.%)
Resolution	0.01 Vol.% (0 to +25 Vol.%)
Reaction time t₉₀	20 s (t95)

Flue gas CO (with H₂-compensation)
Measuring range	0 to +10000 ppm
Accuracy	±5 % of mv (+200 to +2000 ppm) ±10 % of mv (+2001 to +10000 ppm) ±10 ppm (0 to +199 ppm)
Resolution	1 ppm (0 to +10000 ppm)
Reaction time t₉₀	40 s

H₂ only as an indicator

Flue gas COlow (with H₂-compensation)
Measuring range	0 to 500 ppm
Accuracy	±5 % of mv (+40 to +500 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t₉₀	40 s

H₂ only as an indicator

Flue gas NO
Measuring range	0 to +4000 ppm
Accuracy	±5 % of mv (+100 to +1999 ppm) ±10 % of mv (+2000 to +4000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +4000 ppm)
Reaction time t₉₀	30 s

Flue gas Nolow
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	±0.1 ppm (0 to +300 ppm)
Reaction time t₉₀	30 s

Flue gas NO₂
Measuring range	0 to +500 ppm
Accuracy	±5 % of mv (+100 to +500 ppm) ±5 ppm (0 to +99.9 ppm)
Resolution	0.1 ppm (0 to +500 ppm)
Reaction time t₉₀	40 s

Flue gas SO₂
Measuring range	0 to +5000 ppm
Accuracy	±5 % of mv (+100 to +2000 ppm) ±10 % of mv (+2001 to +5000 ppm) ±5 ppm (0 to +99 ppm)
Resolution	1 ppm (0 to +5000 ppm)
Reaction time t₉₀	30 s

Flue gas degree of effectivity, Eta (calculated)
Measuring range	0 to +120 %
Resolution	0.1 % (0 to +120 %)

Flue gas loss (calculated)
Measuring range	0 to +99.9 %
Resolution	0.1 % (0 to +99.9 %)

Flue gas dewpoint (calculated)
Measuring range	0 to +99.9 °Ctd
Resolution	0.1 °Ctd (0 to +99.9 °Ctd)

Flue gas CO₂ calculation (calculated from O₂)
Measuring range	0 to CO₂ max
Accuracy	calculated from O₂ ±0.2 Vol.%
Resolution	0.01 Vol.%

Flue gas H₂S
Measuring range	0 to +300 ppm
Accuracy	±5 % of mv (+40 to +300 ppm) ±2 ppm (0 to +39.9 ppm)
Resolution	0.1 ppm (0 to +300 ppm)
Reaction time t₉₀	35 s

Flue gas CO₂ – NDIR
Measuring range	0 to +50 Vol.%
Accuracy	±0.3 Vol.% + 1 % of mv (0 to 25 Vol.%) ±0.5 Vol.% + 1.5 % of mv (>25 to 50 Vol.%)
Resolution	0.01 Vol.% (0 to 25 Vol.%) 0.1 Vol.% (> 25 Vol.%)
Reaction time t₉₀	10 s

Velocity / Volume flow
Measuring range	0 to +40 m/s
Resolution	0.1 m/s (0 to +40 m/s)

Methane (CH₄)
Measuring range	100 to 40000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (2 x mV methane)
Reaction time t₉₀	< 40 s
Response factor	1

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Propane (C₃H₈)
Measuring range	100 to 21000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (5 x mV propane)
Reaction time t₉₀	< 40 s
Response factor	1.5

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

Butane (C₄H₁₀)
Measuring range	100 to 18000 ppm
Accuracy	< 400 ppm (100 to 4000 ppm) < 10 % of mv (> 4000 ppm)
Resolution	10 ppm
Min. O₂ requirement in flue gas	2 % + (6.5 x mV butane)
Reaction time t₉₀	< 40 s
Response factor	2

Lower explosion limit (LEL) must be adhered to.
The HC sensor is adjusted to methane ex-works. It can be adjusted to a different gas (propane or butane) by the user.

General technical data
Weight	4800 g
Dimensions	330 x 128 x 438 mm
Operating temperature	-5 to +45 °C
Product-/housing material	ABS
Protection class	IP40
Connectable probes	1 x combustion air temperature probe; 1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
Product colour	Black
Battery type	lithium batteries
Battery life	5 h
Power supply	AC mains unit 100V to 240V (50 to 60 Hz)
DC electric tension input	11V to 40V
Pump flow	1 l/min. with through-flow monitoring
Hose length	16.2 m (corresponds to 5 probe hose extensions)
Max. pos. press./flue gas	50 mbar
Max. neg. press./flue gas	-300 mbar
Max. dust load	20 g/m³ dust in flue gas
Dewpoint calculation	0 °Ctd; 99 °Ctd
Max. humidity load	70 °C dewpoint temperature
Trigger input	Voltage 5 to 12 Volt (rising or trailing edge) pulse width > 1 sec load: 5 V/max, 5 mA, 12 V/max. 40 mA
Maximum memory	250,000 readings
Interface	data bus; Bluetooth®; USB; IR/IRDA interface; Mains connection; trigger input; Differential Pressure; probe input/ probe inputs; DC-voltage input; dilution gas inlet for measurement range extension
Storage temperature	-20 to +50 °C

Application

Downlods

Datasheet Download Instruction Manual Download
